| Product Button | Model: Spring |
| Type | Straight |
| Contact | 1NO |
| Color | Blue |
| Diameter | 22 mm |
| Contact Current (Ie) | 4 A (250V AC) |
| Application Category | AC 15 |
| Mechanical Life (Min Units) | 500,000 |
| Electrical Life (Min Units) | 100,000 |
| Operating Frequency (Open/Close per Hour) | Mech. 3000 Elec. 1200 |
| Insulation Voltage (Ui) | 300V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Dielectric Strength (Body-Contact) | 2,500V AC |
| Dielectric Strength (Contact-Contact) | 1,500V AC |
| Insulation Resistance | 10 MΩ min. (500V DC) |
| Operating Temperature | -15 / +80 °C |
| Pollution Degree | 3 |
| Protection Class | IP50 |
| Contact Material | AgNi |
| Cable Connection Section | 1.5-2.5 mm² |
| Tightening Torque | 1.5 Nm |
| Short Circuit Breaking Capacity (Ics) | 1 kA |
| Manufacture Date | |
| Series | B Series Plastic |

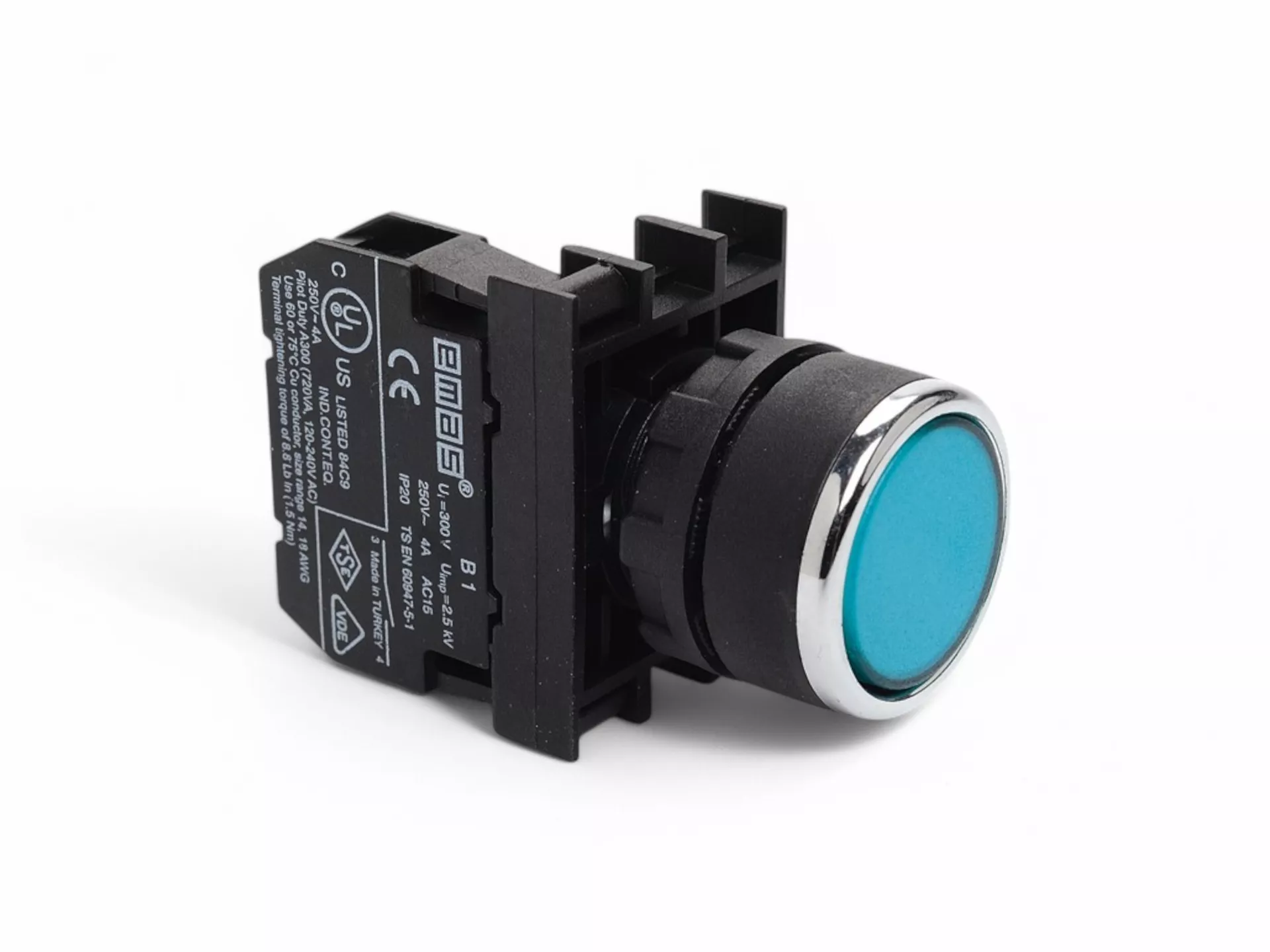

B Series Plastic 1NO Spring Return Flat Blue 22 mm Push Button
<
>
B Series Plastic 1NO Spring Return Flat Blue 22 mm Push Button
-
Stock Quantity:
Available
